AGRICULTURAL MACHINERY REPLACEMENT PARTS
A missing part should not end the job.
Drawing- and sample-based replacement components for agricultural machinery maintenance and repair.
Drawings. Samples. Defined requirements.
01 / THE STARTING POINT
When the original part is difficult to source.
Start with the available drawing, sample, photos or part reference. We review the requirements before defining a manufacturing route.
REFERENCE IMAGERY

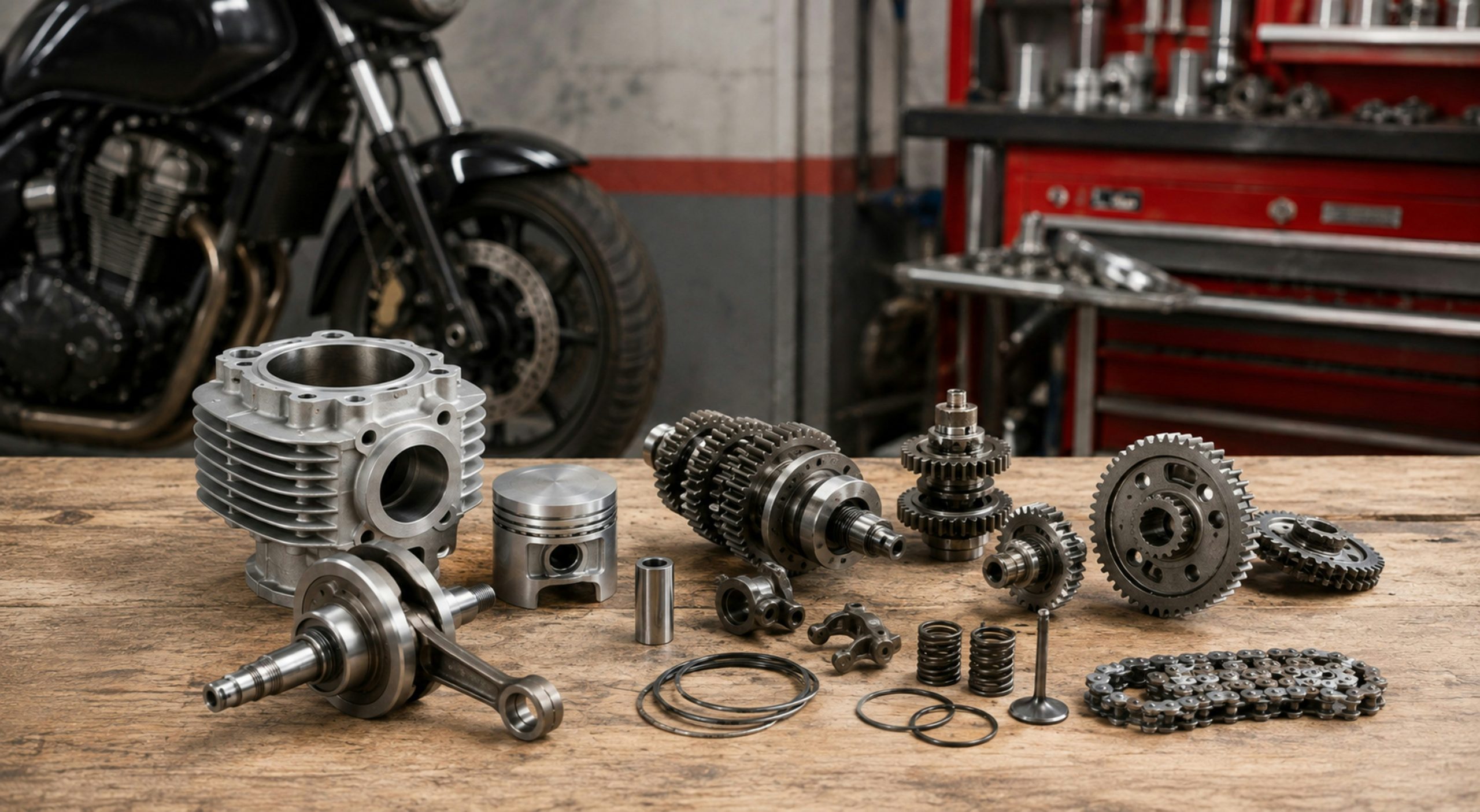

Gears and splined shafts.
REFERENCE IMAGERY

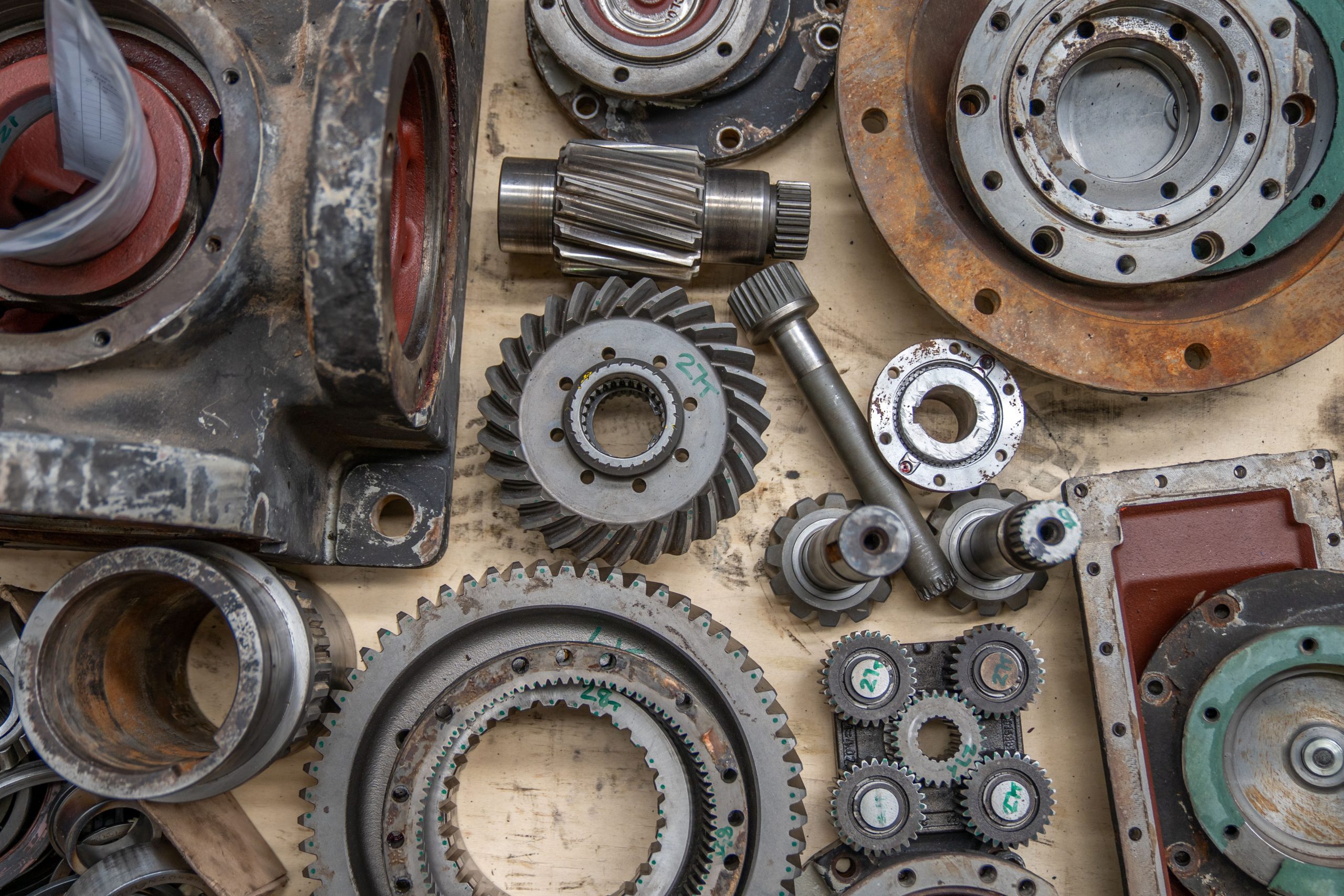

Disassembled mechanical components.
02 / REPLACEMENT SUPPORT
Replacement support starts with the details.
Shafts & pins
Key diameters, bearing seats and mating interfaces.
Bushings & spacers
Material, bore dimensions and installation requirements.
Brackets & machined housings
Mounting features, dimensions and agreed tolerances.
Examples of components for review. Final scope depends on drawings, materials and operating requirements.
03 / WHAT TO PROVIDE
Give the review a useful starting point.
01
Drawing or sample
Share the available drawing, sample, photos or part reference.
02
Material & dimensions
Include material grade, key dimensions and tolerances, if known.
03
Quantity & timing
Provide the required quantity and expected delivery timing.
04
Application details
Explain how the part is used and relevant operating conditions.
Review first. Define the scope. Then manufacture.
01
Review information
We check the provided details and raise questions where needed.
02
Clarify requirements
We confirm dimensions, material and application details.
03
Agree the route
We define the supply scope and manufacturing route for your approval.
04
Inspect & deliver
Parts are inspected against agreed requirements and prepared for delivery.
04 / OUR APPROACH
Clear boundaries. Practical support.
Parts are manufactured to agreed customer requirements. Fit, application suitability and equipment safety require appropriate technical review.
Have an unavailable part to review?
Send your drawing, sample photos or part reference.
